Digging deep in Uptown Dallas near the Katy Trail is nothing like opening a cut out by the Trinity River levees. The Eagle Ford Shale that runs under downtown holds up well until it doesn’t—weathering turns it slick and unstable fast. Over in the eastern part of the county, you hit the Taylor Marl, which swells with moisture and can push a shoring wall out of alignment in a single wet week. Our geotechnical excavation monitoring service tracks these shifts before they become problems. We install inclinometers, piezometers, and settlement points, then feed data back to the project team while the excavation is still active. For deeper cuts where SPT refusal is shallow, we combine monitoring with deep excavation analysis to verify that the support system matches the actual ground response.
In Dallas, the difference between a successful deep excavation and a costly failure often comes down to how quickly you react to a 0.25-inch movement at the top of the shoring wall.
Methodology and scope
Site-specific factors
We’ve seen projects near White Rock Lake where the excavation looked fine on a Friday and by Monday morning the road above had cracked because nobody was watching the dewatering system over the weekend. That’s the practical reality here. Dallas has neighborhoods with 50-year-old clay sewer lines that don’t tolerate differential settlement. The risk isn’t just the excavation collapsing—it’s the lawsuit from the building next door. Without instrumented monitoring, you’re guessing whether the ground is moving. With it, you have a defensible record and the ability to adjust the construction sequence before damage occurs. The IBC Chapter 33 requirements make monitoring mandatory for certain depths, but even when it’s not required by code, the cost of not doing it is higher than most contractors realize.
Relevant standards
ASCE 7-22, IBC 2021 Chapter 33, ASTM D1586-18, ASTM D2487-17
Related services
Shoring and wall deflection monitoring
Inclinometer casings and tiltmeters installed on soldier pile or secant walls. Data correlated with excavation depth and dewatering activity.
Groundwater and pore pressure measurement
Vibrating wire piezometers placed at multiple levels to track drawdown and verify dewatering performance in Woodbine Aquifer conditions.
Adjacent structure and utility settlement

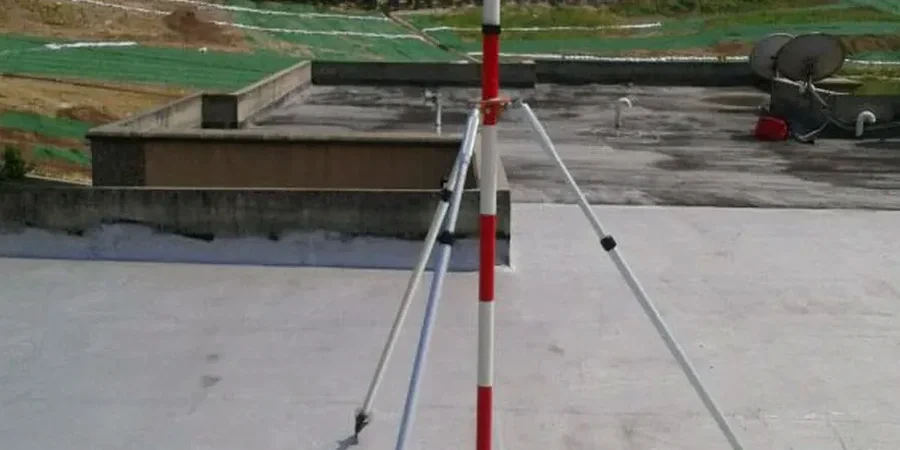

Optical survey points and crack monitors on neighboring buildings, plus continuous settlement profiling above aging clay utility lines.
Typical parameters
Quick answers
What monitoring does Dallas code actually require for excavations?
IBC 2021 Chapter 33 requires monitoring for excavations deeper than 20 feet or those that could affect adjacent structures. Dallas also enforces the International Existing Building Code provisions when working next to occupied buildings. At minimum, expect lateral movement monitoring on the shoring system and settlement surveys on nearby structures within the zone of influence.
How much does excavation monitoring cost on a typical Dallas project?
For a standard basement excavation with inclinometers, piezometers, and settlement points, monitoring programs run between US$890 and US$2,790 depending on instrument count, depth, and duration. Longer monitoring periods and automated systems push toward the upper end of that range.
How fast can you deploy instruments once the contract is signed?
Most setups can be installed in 24 to 48 hours if the excavation is already underway. Inclinometer casings need to be grouted and allowed to set, but settlement points and crack gauges can start collecting baseline data the same day.
What happens when a movement threshold is exceeded?
The field team notifies the project engineer immediately. We increase monitoring frequency and compare the movement pattern against the design assumptions. If the trend continues, recommendations might include slowing excavation, adding tiebacks, or adjusting the dewatering system. The goal is to catch the problem early enough that corrective action is still practical.
